HYBRID SINGLE DOOR HS-42R EW60 630KVA (L) - Ventilated

Description:

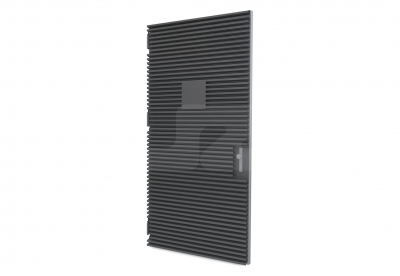

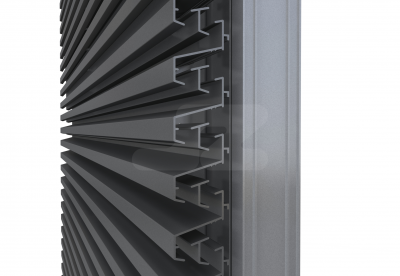

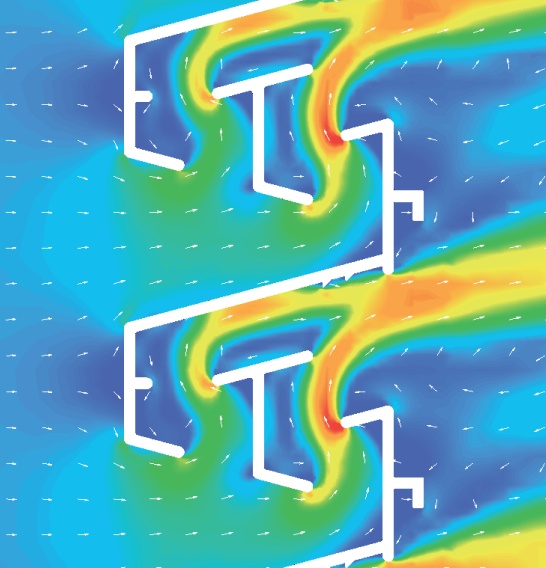

A single steel door for a type 2A/S3 customer substation up to 630kVA, designed based on the latest available specifications of grid operator Enexis. It consists of a steel Forster Presto frame, measuring 1290x2640mm (wxh), with a total door opening of 1150x2500mm (wxh), and an aluminum surface-mounted grille type HS-42R. The door has a gross cross-section of 21,150cm² / 8,880cm² net and is left-outward-opening.

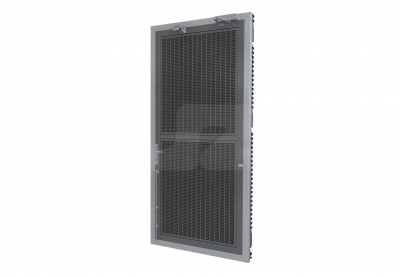

The fire-resistant door complies with the fire resistance class. Behind the ventilating grille is a fire-resistant cassette, made of untreated perforated stainless steel.

Specifications:

• Material: Steel/Aluminum
• Frame size: 1290x2640mm (wxh)
• Total door day size: 1150x2500mm (wxh)
• Weight: 190 kg
• Burglar resistant: No
• Fire retardant: E120 EW60 according to NEN-EN 1634-1
• Gross area: 21,150 cm²
• Net area: 8,880 cm²

Door is equipped with:

• Lock: Forster 917908 with panic function
  Suitable for a single-sided 17mm Euro profile cylinder
• Fittings: AMI security fittings
  Exterior fitting: Fixed knob on outer shield
  Interior fitting: Rotating handle on blind interior shield
• Plastic cover: N/A
• Panic function: Yes
• Push bar: N/A
• Door stop: Stainless steel door stop
• Earthing: M8 incl. earth wire 25mm² (1040mm OK frame)
• Door position limiter: Nylon door position limiter
• Anti-theft claws: Yes
• Frame mounting: Stainless steel wood screw
• Door closer: Dorma TS-83
• Bottom sill: As a frame style

Features:

Rainproof, Snow and dustproof, Sandproof, Puncture-proof, Flame-extinguishing, Mouse-proof, Maintenance-free, One metallic unit for grounding, Vandal-resistant and condensation-draining.

Drawing number JAZO: ST39252
Enexis drawing: Type 2A

Surface treatment:

Featuring a durable, environmentally friendly pretreatment. Powder coated in a RAL color of your choice. The warranty period is 5 years (valid only if the maintenance instructions are followed correctly) with corrosion class C4 on steel and C2 on aluminum according to ISO 12944-2.

Do you need specific advice regarding shielding, access, and ventilation of technical rooms? Feel free to contact us without obligation. We can also provide all your ventilation calculations.
