HYBRID SINGLE DOOR HS-27R EW60 - Ventilating
Article number: WSA10079
New to JAZO?
Simply create an account and take advantage of all the benefits immediately.
Create an account- Manage all your orders in one place
- Your shopping cart stored anytime, anywhere
- Own curated range
- Direct advice from a JAZO expert
- Prices and volume discount in pictures
It is possible to have the products assembled by our professionals so that you are assured of a perfect end result. Would you like to use this assembly service; please contact the Sales department and ask for the conditions
Description:

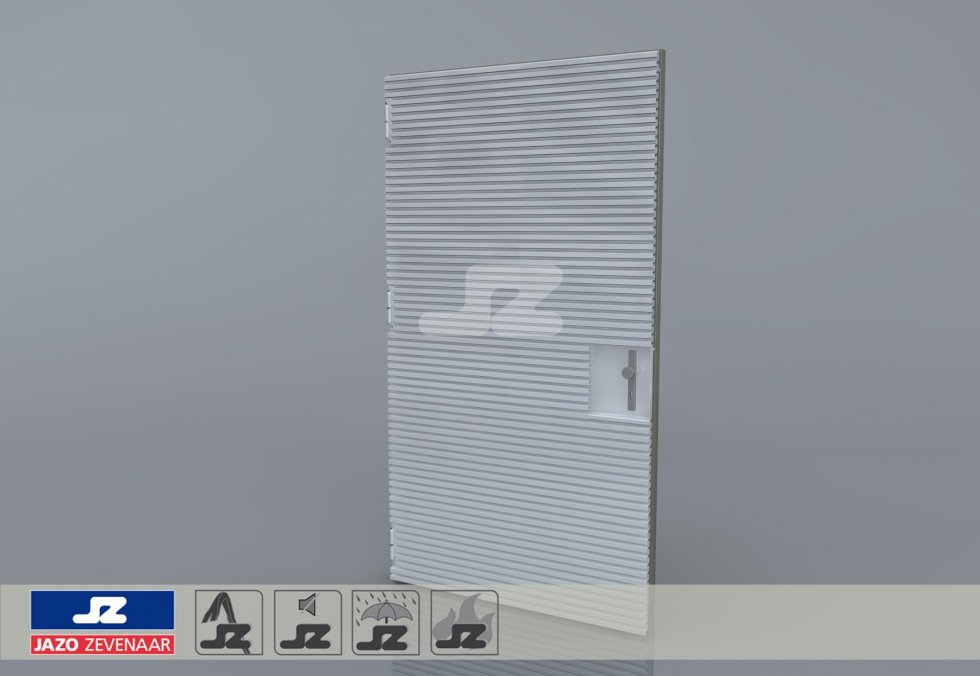

A configurable steel Forster Presto frame with a single door fitted with an aluminium HS-27R surface-mounted grille. The whole is fire-resistant for 60 minutes (EW60) according to standard EN1634-1. The single door is configurable in size and other specifications and can be assembled as desired.
Specifications:
- Material: Steel/Aluminum
- Size: Configurable
- Burglary resistance: No
- Fire resistance: EW60
- Net passage: 27%
- Other specifications, such as: color, grounding, coating, warranty, etc. can be freely configured.
Features:
Aluminium safety ventilation grilles type HS (High Safety) are specially designed for the natural ventilation of transformer rooms and gas rooms, whereby people, animals, equipment and machines are optimally protected.
- Rainproof
- Snow and dust resistant
- Sand-resistant
- Pierce-proof
- Flame retardant
- Mouse-proof
- Maintenance free
- One metallic unit for grounding
- Vandal-proof and condensation-draining
Surface treatment:
Provided with a sustainable environmentally friendly pre-treatment. Powder coating and warranty can be configured in a RAL color of your choice.
Do you need specific advice regarding shielding, access and ventilation of technical rooms? Feel free to contact us without obligation. You can also contact us for all your ventilation calculations
EFD simulation
| Features | Wert |
| Pitch | 36 [mm] |
| Build-in depth | 25 [mm] |
| Drag coefficient in | 61.6 |
| Drag coefficient out | 83.6 |
| Nettflow | 27 [%] |
Download all the files at once
