Manchester (UK) Noma Earth Tubes

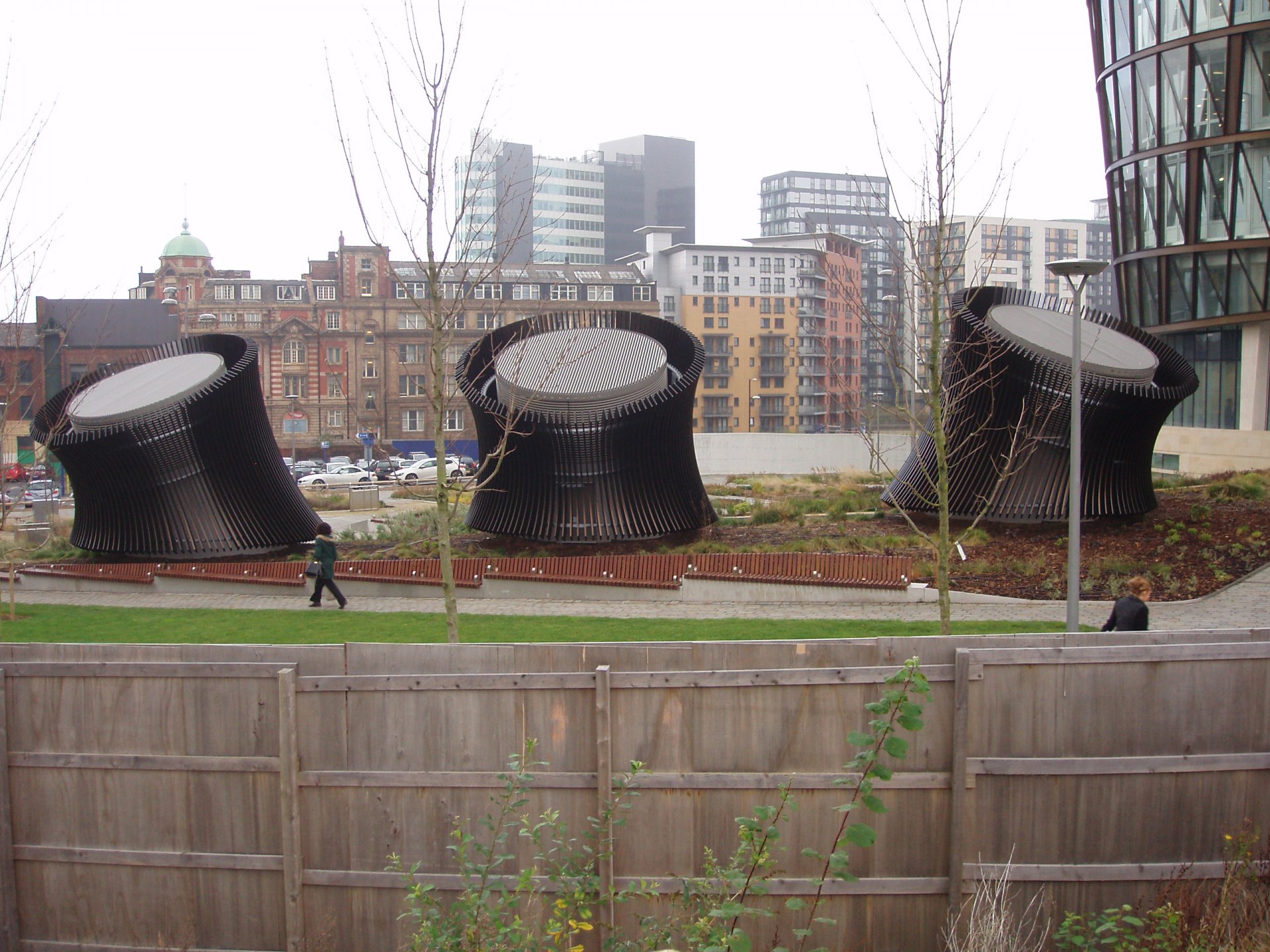

Cylindrical diffusers ensure the ventilation of the car park underneath Noma Square in Manchester.

Design

A challenge of high design level. On top of 3 concrete pipes JAZO placed these cylindrical roofs. Fully water retaining and placed at an angle.

Realization

The rolled aluminum vents, model HS-50, as well as the assembly trestles and the louver ceilings are prefabricated at the JAZO factory. In cooperation with Taurus Littrow from Bingham (UK) assembly was taken care of.
