JAZO NSA 200 - Cable entry hatch
Article number: ST04418-5
New to JAZO?
Simply create an account and take advantage of all the benefits immediately.
Create an account- Manage all your orders in one place
- Your shopping cart stored anytime, anywhere
- Own curated range
- Direct advice from a JAZO expert
- Prices and volume discount in pictures
It is possible to have the products assembled by our professionals so that you are assured of a perfect end result. Would you like to use this assembly service; please contact the Sales department and ask for the conditions
Description

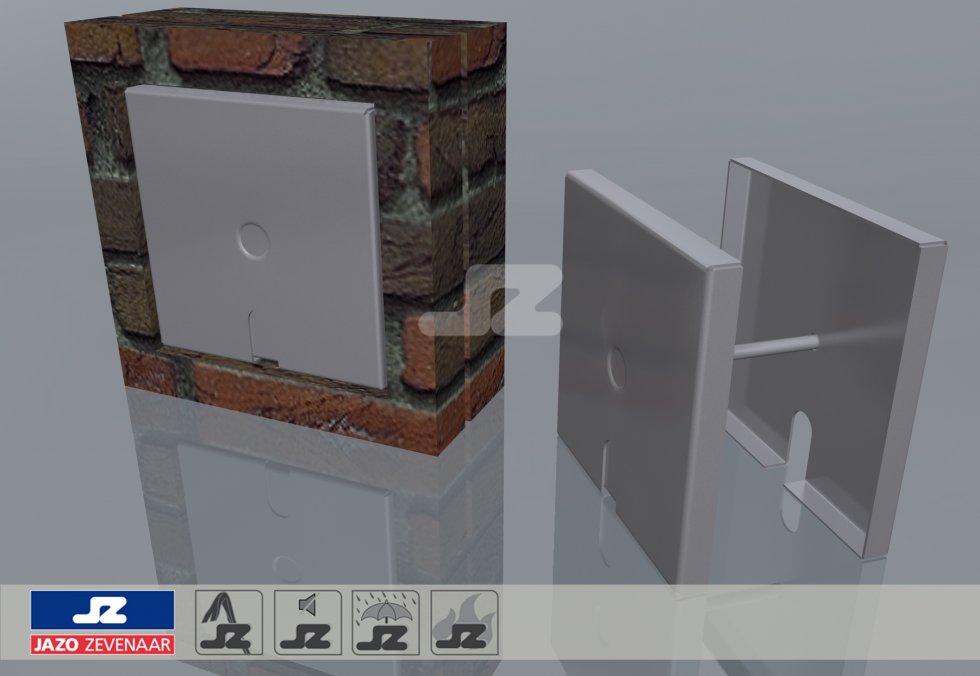

The JAZO NSA 165 - Cable entry hatch is a stainless steel cover of 210x210mm for an emergency power generator (NSA) cable entry with a maximum diameter of 165mm and maximum wall thickness of 465mm. With the NSA cable entry, an emergency power generator that is placed outside a transformer room can be safely connected to the installation inside. The NSA cable entry encloses the cable, preventing pests from entering the room. The outer cover plate is equipped with an EPDM gasket. During installation you can open and close again with a simple wing nut. This cable entry is supplied with a threaded rod M10 of 500mm long. See drawing for further detail
Specifications
- Material: stainless steel
- Dimensions: 512x300x300mm
- Weight (kg): 24.28
- Cover caps: 210x210mm
- Transit: max Ø165mm
- Threaded rod: M10x500mm
- Wall thickness: max 465mm
- Drawing no: ST04418-5
Surface treatment
Untreated stainless steel
See drawing for further detail. Technical information is included under downloads.
